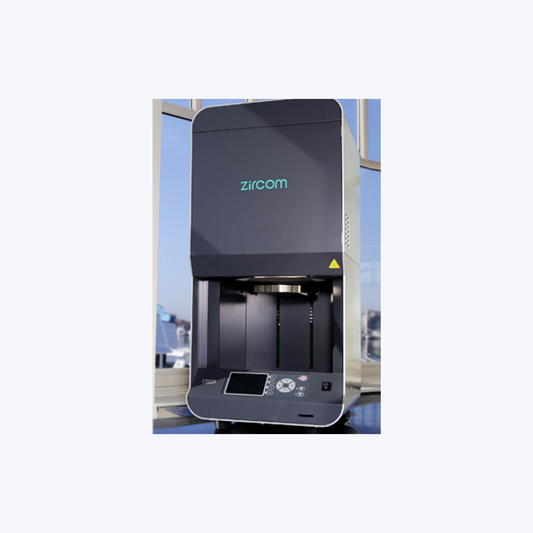

Zircom Sintering Furnace is compact and user-friendly.

Zircom is designed to sinter a variety of zirconia materials. The unit is programmable to sinter at normal and quick-firing settings. It allows you to input 100 programs with 20 steps each. Has the capability to sinter 75 units simultaneously.

Specifications:

Power Requirement: AC 220 V 50/50Hz Max 2.5kVA
Dimensions:12 (w) x 25 (h) x 18 (d) inches
Heating Elements: Molybdenum Disilicide
Display: 3.5inch LCD Color Display
Firing Platform: 3.74 inches (.095mm)
Tray: 3 stackable trays
Weight: 88 lbs (40kg)
Max. Temperature: 2,912??F, (1,600??C)
Programs: 100 (up to 20 steps each)
SD Card Slot: Software Update/Program Back Up

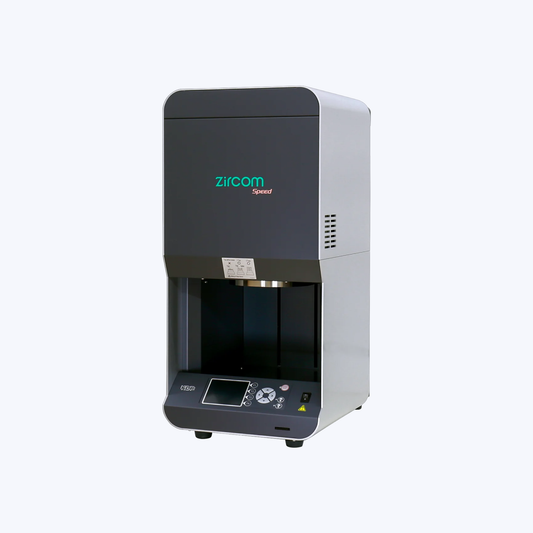

Zircom Speed Sintering Furnace is very compact with a size of 12 (W) x 25 (H) x 18 (D) inches and it is also user-friendly with very simple operation.

The unit is applicable to various types of zirconia materials.

Forced on 90 minutes sintering material But normal sintering time (avg7-10 hrs material) available too. Customers can choose each material scheduling time.

2 Carbon(SiC) Trays formation for 90 min fast sintering material( total 20 single crowns).

Also normal sintering time (avg. 7-10 hrs material), in 3 ceramic trays formation total of 50-60 single crown sintering.

Programmable
Sintering Furnace
Compact and user-friendly Zircom is designed to sinter a variety of zirconia materials. Zircom allows you to put 100 programs with 20 steps for wide range of zirconia. It features a molybdenum disilicide heater that provides clean, reliable, and consistent results.

Quick Firing Program
One of Zircom`s most attractive characteristics is a quick firing program with high temperature (1600??C) with a LED display.

SD Card
Zircom Sintering Furnace features SD Card which allows users to edit their firing program on their PC. In addition, it is also capable of updating the unit when it is necessary.

Specifications
Power Requirement:
AC 220V. 50/60Hz. Max. 2.5kVA

Dimension:
12 (w) x 25 (h) x 18 (d) inches

Display:
3.5inch LCD Color Display

Firing Platform:
95mm (3.74 inch)

Weight:
88lbs (40kg)

Max Temperature:
1,600??C (2,912??F)

Programs:
100 (20 Steps)

SD Card Slot:
Software Update
Program Back Up
