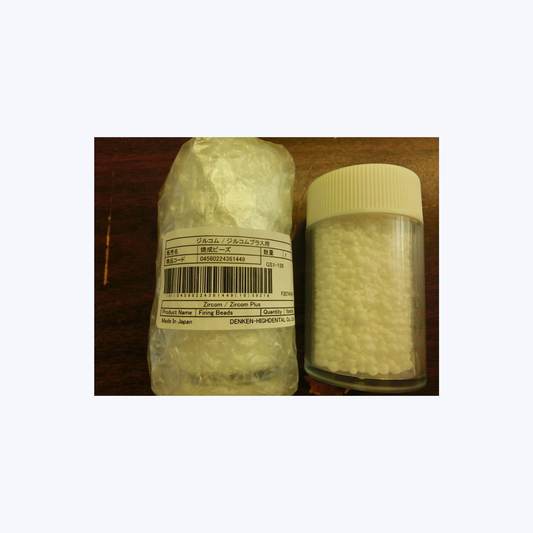

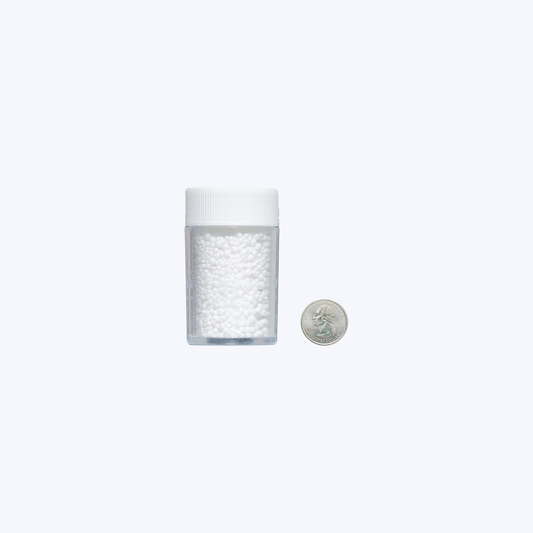

Zircom Firing Beads 3oz

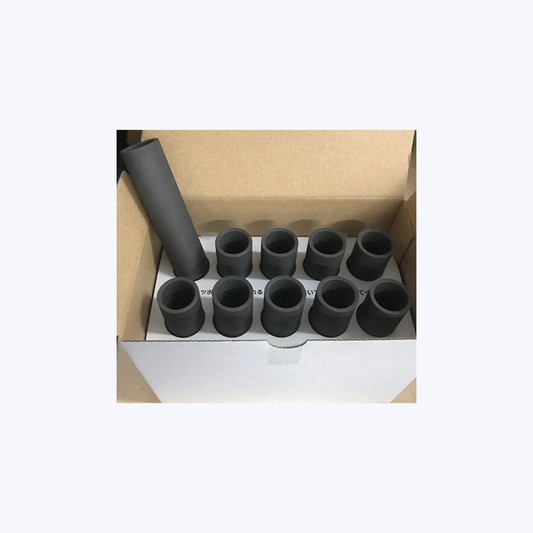

Carbon Crucible. 10/box

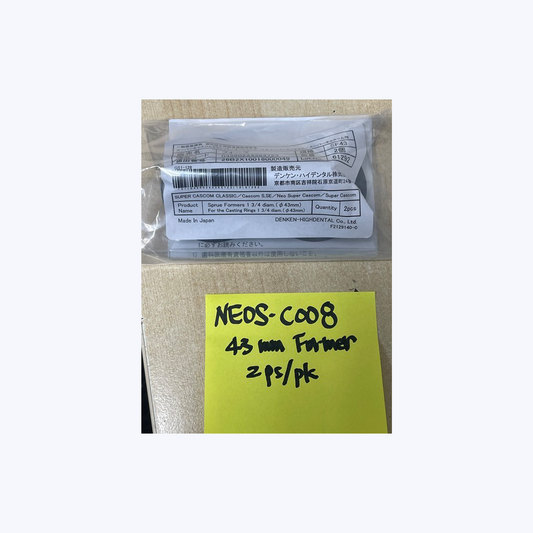

Sprue Former 43mm (3/pk)

Zircom Speed Sintering Furnace is very compact with a size of 12 (W) x 25 (H) x 18 (D) inches and it is also user-friendly with very simple operation.

The unit is applicable to various types of zirconia materials.

Forced on 90 minutes sintering material But normal sintering time (avg7-10 hrs material) available too. Customers can choose each material scheduling time.

2 Carbon(SiC) Trays formation for 90 min fast sintering material( total 20 single crowns).

Also normal sintering time (avg. 7-10 hrs material), in 3 ceramic trays formation total of 50-60 single crown sintering.

Programmable
Sintering Furnace
Compact and user-friendly Zircom is designed to sinter a variety of zirconia materials. Zircom allows you to put 100 programs with 20 steps for wide range of zirconia. It features a molybdenum disilicide heater that provides clean, reliable, and consistent results.

Quick Firing Program
One of Zircom`s most attractive characteristics is a quick firing program with high temperature (1600ºC) with a LED display.

SD Card
Zircom Sintering Furnace features SD Card which allows users to edit their firing program on their PC. In addition, it is also capable of updating the unit when it is necessary.

Specifications
Power Requirement:
AC 220V. 50/60Hz. Max. 2.5kVA

Dimension:
12 (w) x 25 (h) x 18 (d) inches

Display:
3.5inch LCD Color Display

Firing Platform:
95mm (3.74 inch)

Weight:
88lbs (40kg)

Max Temperature:
1,600ºC (2,912ºF)

Programs:
100 (20 Steps)

SD Card Slot:
Software Update
Program Back Up

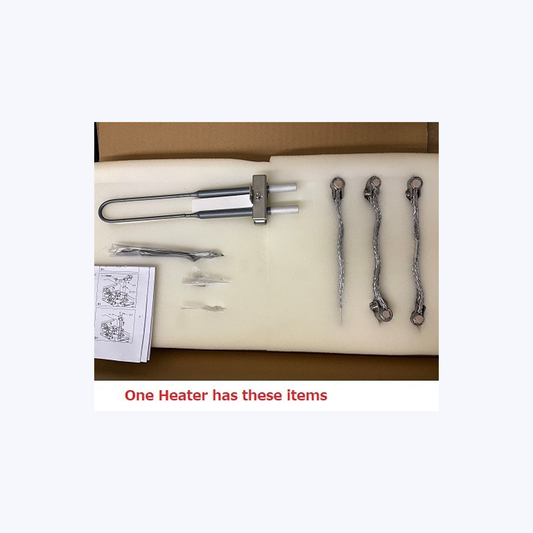

Heating Element for Zircom/PLUS

Zircom Firing Cover (No Slit)

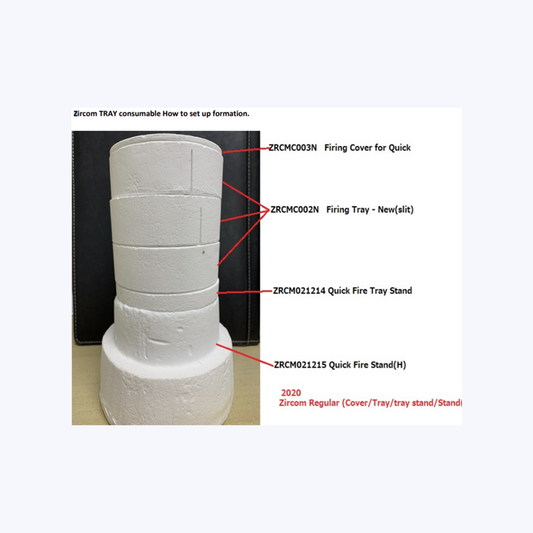

Firing Cover for Quick - Zircom

Zircom Quick Firing Tray Stand

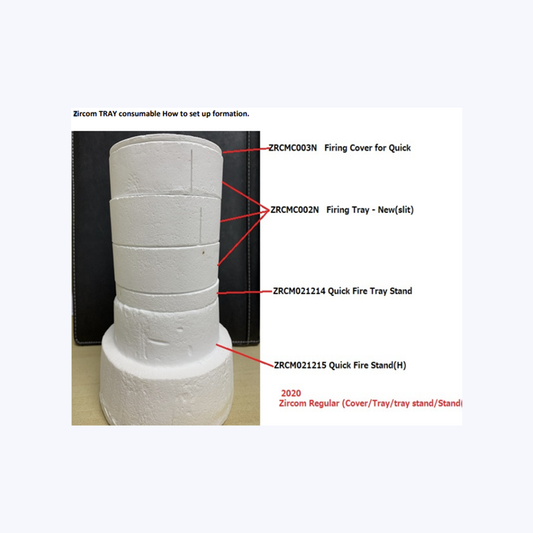

Zircom Quick Fire Stand

Zircom New Firing Tray - Slit

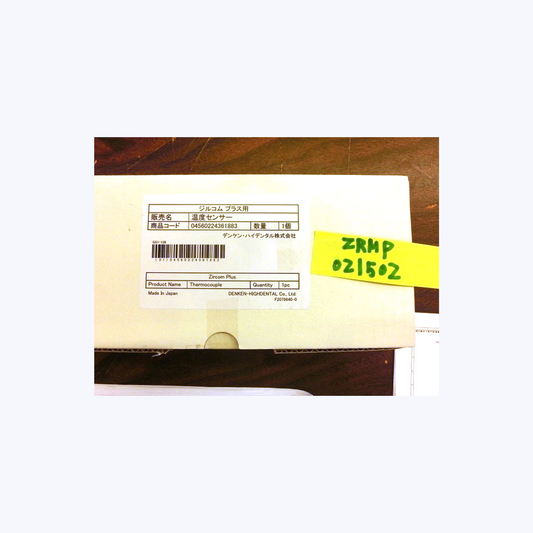

Thermocouple for Zircom Plus

Durable ceramic split crucibles designed for use with the Nautilus casting system. These high-quality crucibles ensure consistent melting performance for both precious and non-precious alloys, delivering precision and reliability in every cast.

• Compatible with Nautilus and Nautilus T casting machines

• Excellent thermal resistance for high-temperature applications

• Split design allows easy removal and handling of molten material

• Includes 4 ceramic crucibles per pack

Precision graphite inserts designed for use with BEGO Nautilus casting systems. These inserts support stable and efficient melting by offering excellent conductivity and thermal resistance during the casting process.

• Compatible with Nautilus and Nautilus T casting machines

• Provides consistent heat transfer and melt stability

• High thermal resistance for repeated use in high-temperature environments

• Includes 6 graphite inserts per package

Durable and heat-resistant handles designed for safely handling crucibles in BEGO Nautilus casting systems. These handles provide a secure grip and improved operator safety during the casting process.

• Compatible with BEGO Nautilus crucibles

• Heat-resistant construction for safe handling during high-temperature use

• Ergonomic design for better control and stability

• Essential accessory for efficient crucible operation

Durable and heat-resistant holder designed to securely position crucibles within BEGO Nautilus casting machines. Provides stable support during the casting process to ensure safe and accurate alloy melting.

• Compatible with BEGO Nautilus casting systems

• Holds crucibles securely in place during operation

• Made from heat-resistant materials for high-temperature use

• Essential for safe and precise casting performance
